We are Manufacturer, Supplier, Exporter of Power Magnets, Alnico Vi - Usual Application For Separators & Holding and our set up is situated in Satara, Maharashtra, India.

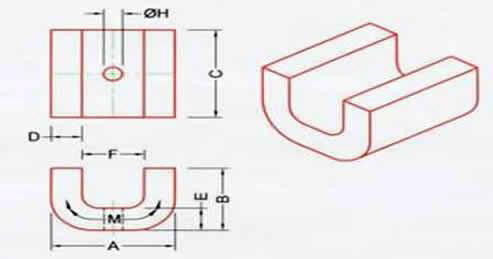

Fig: Power Magnets
Magnet Drg No. |
Dimensions In mm |
Weight In Grams |
Holding Force Kgwt |
||||||
A |
B |
C |
D |
E |
F |
фH |
|||
6S3511 |
38.5 |
25.4 |
25.4 |
10.0 |
10.0 |
18.5 |
5.0 |
110 |
7 |
|---|---|---|---|---|---|---|---|---|---|
6S353 |
60 |
39.2 |
61.5 |
12.5 |
16.0 |
35.0 |
8.0 |
620 |
30 |
6S352 |
44.5 |
29.5 |
28.6 |
11.2 |
13.0 |
22.1 |
6.0 |
170 |
10 |
6S355 |
90 |
56.5 |
48 |
25.0 |
28.0 |
40 |
8.0 |
1230 |
50 |
Note : Holding force is measured subject to the following conditions:
- Power Magnets is magnetised to saturation
- The object to be held should be a solid piece of a FerroMagnetic material (such as a mild steel block) of sufficient thickness so that it does not attain saturation during this operation. It must not be in the form of very thin sheet or loose particles.
- There is close contact between the magnet poles and the surface of the object.
